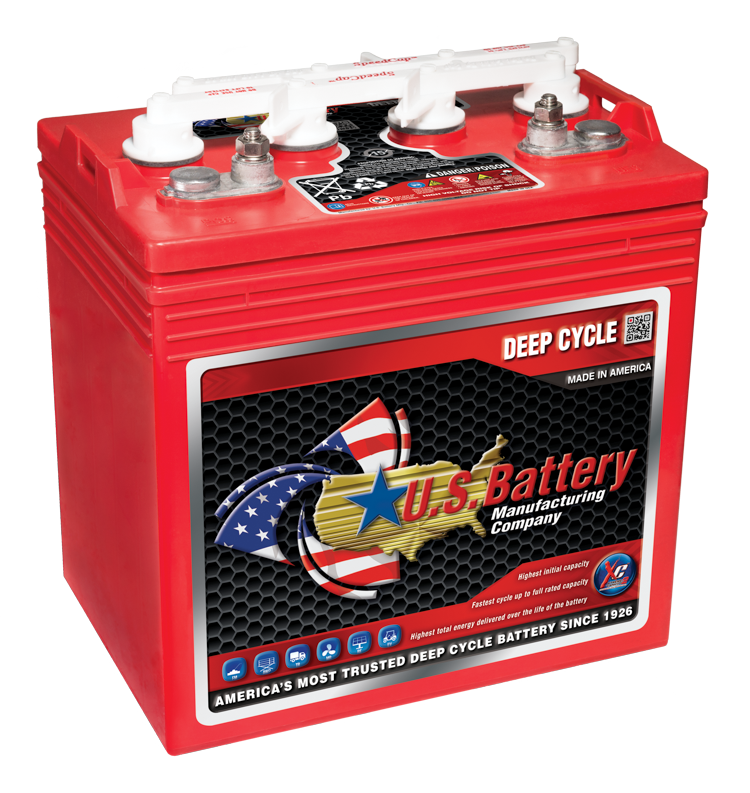

US Battery US 8VGC XC2 — 8V 170Ah Flooded Deep-Cycle Golf Cart Battery
US Battery US 8VGC XC2 — 8V 170Ah Flooded Deep-Cycle Golf Cart Battery
Couldn't load pickup availability
Wet flooded batteries ship by LTL freight on a pallet — choose liftgate/residential or commercial dock delivery at checkout. Placing a large order? Call 909-557-6987 for a pallet quote.
The US 8VGC XC2 is U.S. Battery's 8-volt GC8 deep-cycle battery, built for 48V golf cart packs where six batteries replace eight 6-volt units — the classic Club Car-style configuration. It uses the exclusive XC2™ (Xtreme Capacity 2) formulation with Diamond Plate Technology®, delivers 170 amp-hours at the 20-hour rate, and is handcrafted in the USA.
Pack sizing
- 48V system: 6 batteries — the standard 8-volt configuration
- 8-volt batteries are not typically used to build 36V packs; use 6V (GC2) or 12V (GC12) for those systems
Specifications
| Part number | US8VGCXC2 |
| Chemistry | Flooded (wet) lead-acid, deep cycle |
| Nominal voltage | 8 V (4 cells) |
| BCI group size | GC8 |
| Capacity @ 20-hr rate | 170 Ah |
| Capacity @ 100-hr rate | 189 Ah |
| Capacity @ 72-hr rate | 185 Ah |
| Capacity @ 48-hr rate | 180 Ah |
| Capacity @ 10-hr rate | 151 Ah |
| Capacity @ 6-hr rate | 133 Ah |
| Capacity @ 5-hr rate | 138 Ah |
| Capacity @ 2-hr rate | 96 Ah |
| Capacity @ 1-hr rate | 111 Ah |
| Minutes of discharge @ 25 A | 325 min |
| Minutes of discharge @ 56 A | 118 min |
| Minutes of discharge @ 75 A | 82 min |
| Standard terminal | Molded-in UTL |
| Optional terminals | UT, Off-set "S", Large "L", Small "L", SAE |
| Terminal color | Red / Red |
| Cover options | Also available as US 8VGCi XC2, compatible with select OEM watering kits (SpeedCap® vent not available on the "i" cover) |
| Length | 10-1/4 in (260 mm) |
| Width | 7-1/8 in (181 mm) |
| Height | 11-1/4 in (286 mm) |
| Weight (wet) | 62 lbs (28 kg) |
| Container | Polypropylene, heat sealed |
| Country of origin | Made in USA |
| Warranty | 12-month free replacement (flooded deep-cycle limited warranty) |
| Cold cranking amps | Not rated — this is a deep-cycle battery, not a starting battery |
Recommended charging
Two-stage charge profile. Bulk charge at constant current of approximately 10% of the C/20 capacity up to 2.45 ± 0.05 V per cell (about 9.8 V for this 8V battery), then absorption charge at constant voltage until current falls to 3% of C/20, holding 2 to 3 hours. Optional float at 2.17 V per cell (8.68 V). Equalize at 2.55 ± 0.05 V per cell for 1 to 3 hours roughly every 30 days. Typical charge time from full discharge is 9 to 12 hours. Specific gravity at full charge is 1.270 minimum. Compensate −0.028 V per cell for every 10°F above 80°F.
Maintenance
Flooded batteries require periodic watering with distilled water after charging. Check electrolyte levels monthly in hot weather. Keep terminals clean and torqued to spec.
Freight & handling
Flooded lead-acid batteries are classified UN2794, Class 8 corrosive, and ship as regulated hazmat by LTL motor freight. Orders arrive palletized and strapped. Select liftgate/residential if you do not have a forklift or loading dock — the driver will lower the pallet to ground level. Select commercial (loading dock available) only if you can unload from a trailer height. Someone must be present to sign and inspect the freight.
Specifications sourced from the manufacturer: U.S. Battery US 8VGC XC2 product page and official group data sheet (PDF).
Core charge: a refundable $21 core deposit applies unless an old battery of the same type is exchanged at time of purchase. The price shown assumes a core exchange.
